Description

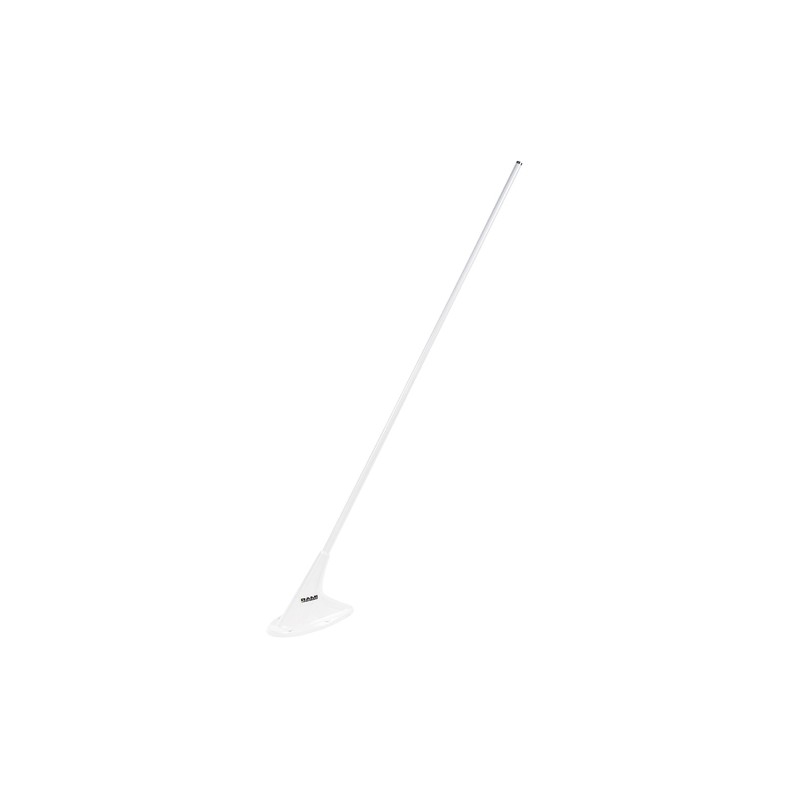

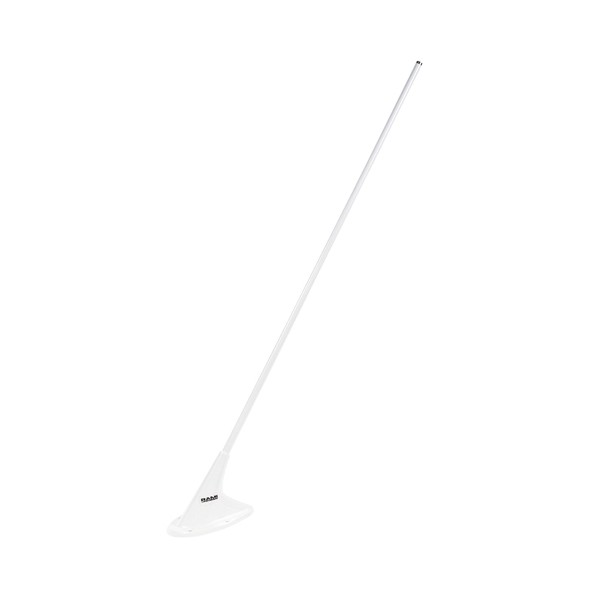

The AV-529 is designed for broadband communications (118-136 MHz). It has a die-cast aluminum base and a uniquely designed radiator encapsulated in a fiberglass whip. The antenna is supplied with a weather-sealing gasket and mounting hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes of 50,000 ft. It has a drag force of 3.43 lb @ 250 mph.
Specifications
- Manufacturer: RAMI
- Model: AV-529
- Frequency: 118 - 137 MHz
- Impedance: 50 Ohms Nominal
- VSWR: 2.5 to 1 Maximum
- Polarization: Vertical
- Pattern: Omni-Directional
- Connector: Type "BNC" Female
- RF Power Capacity: 25 Watts
