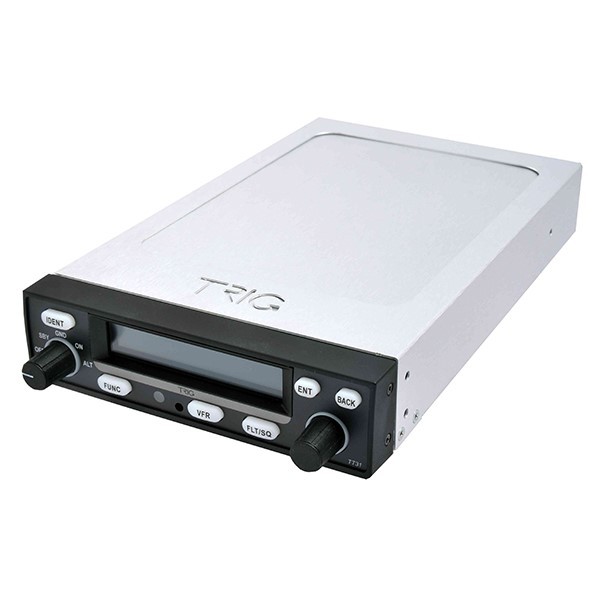

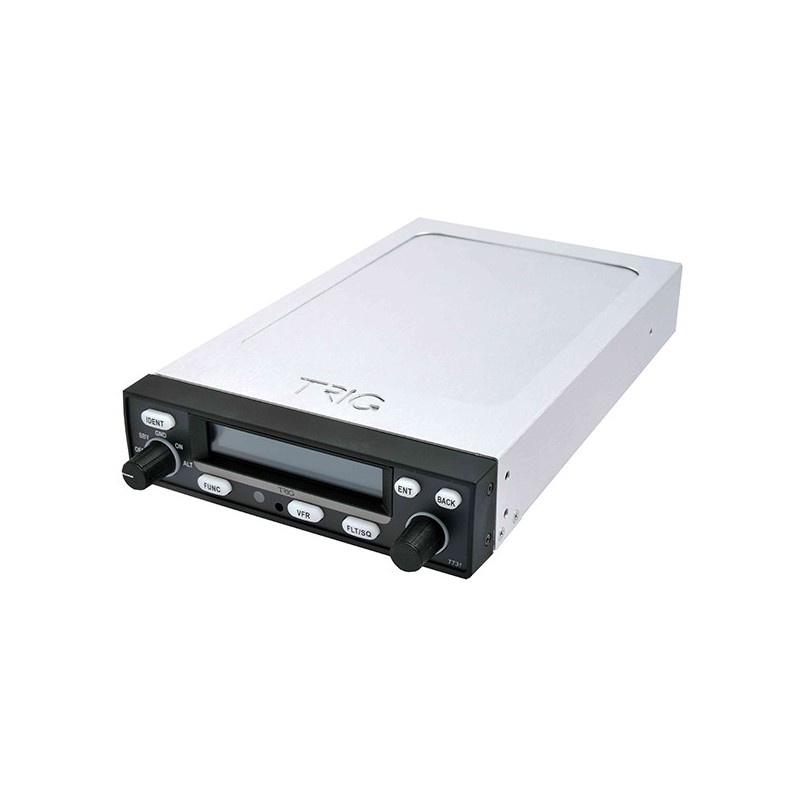

TRIG TT31 TRANSPONDER (COMPLETE SYSTEM)

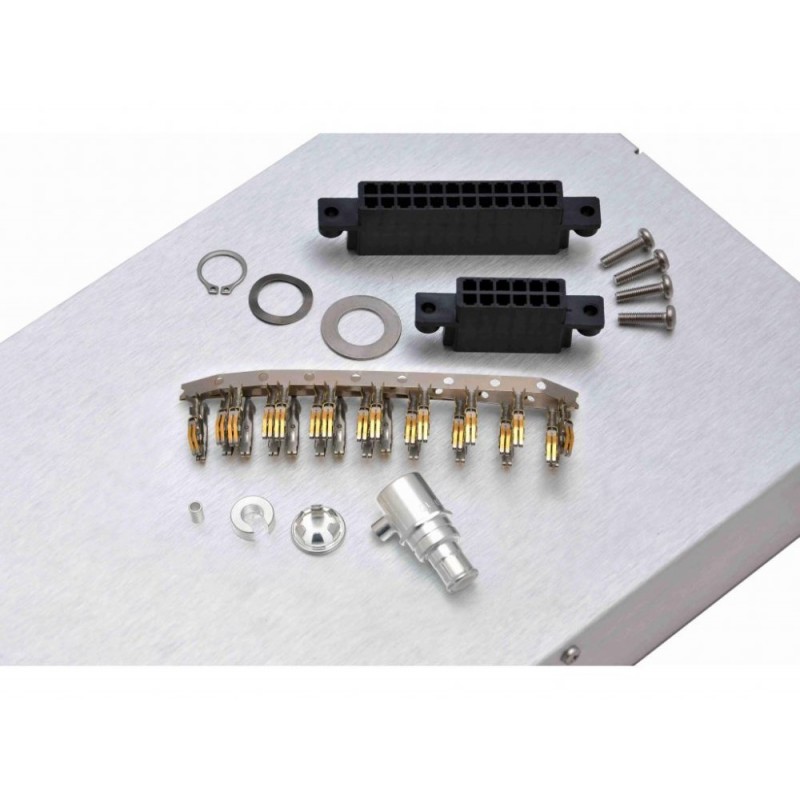

Include mounting tray and installation kit.

In stock! Ref. 69315

2.536,47 € + VAT (3.069,13 € VAT Inc.)

Quantity

▲
▼

Description

Trig’s TT31 transponder is the ideal retro-fit for the popular Bendix King legacy transponders. The TT31 will ‘plug and play’ straight into an existing KT76A, KT76C and KT78A tray. This significantly reduces both installation time and cost. It provides pilots with Class 1 Mode S technology that is also 1090ES ADS-B Out capable too – to the latest international standard.

The TT31 is compatible with many popular GPS position sources including Garmin GNS and GTN navigators and the Trig TN70. This makes installation flexibility the best in class. A free FAA STC allows the TT31 to be installed as a compliant ADS-B Out solution in 650 aircraft types.

If you are going to perform a new installation, don't forget to add the mounting tray and the installation kit.

Additional Features

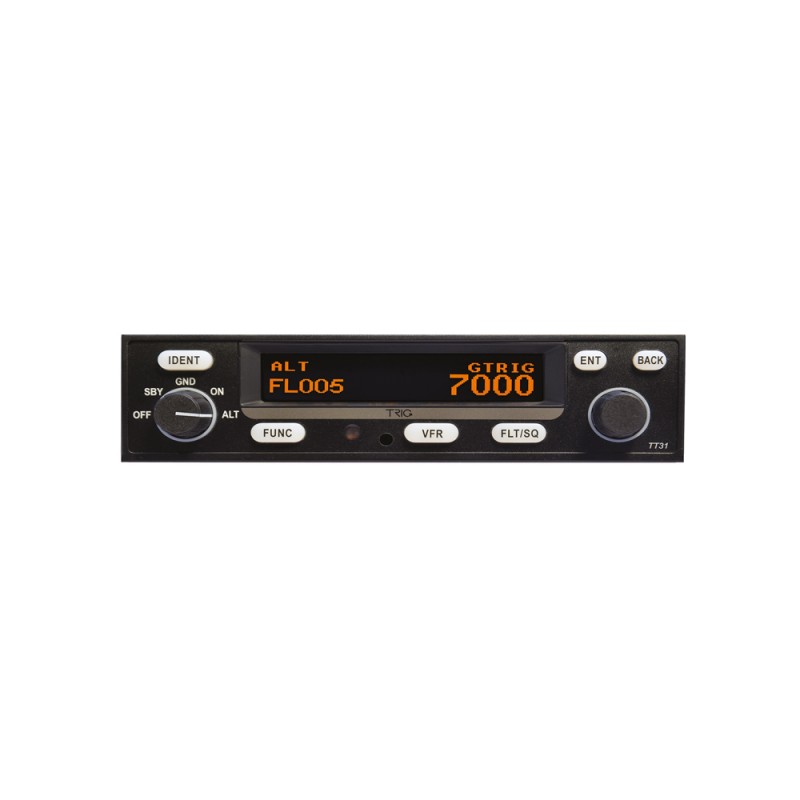

The TT31 is a highly efficient class leading transponder. It’s easy to use and operate, with a clear bright display and simple user interface. Features include a flight timer, stop watch and altitude monitor (can alert you of a deviation from your selected altitude). The TT31 includes data link support for the U.S. TIS traffic service, up-linked from approach radars. TIS traffic can be displayed on a variety of portable and panel mount displays, coverage includes most US terminal areas. The latest performance upgrades are available during the life of your product via Trig software upgrades, avoiding the need for expensive hardware upgrades.

Mode–S and ADS-B

Mode A and C transponders are now being replaced by Mode-S transponders, this technology is optimised for tomorrow’s airspace requirements. The introduction of ADS-B surveillance technology means the modern transponder has now become the hub of future airspace compliance requirements. Here the TT31 remains the class leader, it was the world’s first transponder certified to TSO-C166b. This is latest FAA standard for the U.S. 2020 ADS-B mandate and demonstrates Trig’s advanced levels of compliance. It’s worth remembering that to receive all ADS-B In traffic transmissions in the U.S. the FAA requires a functioning certified ADS-B Out device.

Product Design

The TT31 uses half the electrical power of legacy transponders, whilst still transmitting at a higher signal power, its efficient design reduces waste heat in the avionics stack. This reduces the load on the aircraft electrical system improving overall reliability. The flexible power input means that both 14 and 28 volt systems can be used without special configuration or dropper resistors (we recommend that any dropper resistor fitted for a previous transponder should always be removed). The TT31 is compatible with both parallel and serial altitude encoders; it can even act as a serial altitude repeater to provide a convenient altitude source for your GPS.

Specifications

Manufacturer: Trig Avionics
Model: TT31
p/n: 00220-00-01
Certification: ETSO C166A, 2C112B and TSO-C112, C166b
Compliance: ED-73B, DO-160E, DO-178B Level B, DO181C, DO-260B Class B1S, DO-254 Level C
Supply voltage: 11 – 33 VDC
Consumption (at 14V): idle: 0,22 A, active: 0,45 A
Nominal transmitter power: 240W at connector
Operating temperature: -20°C to + 70°C
Weight: 1,35Kg
